MOAB338

MOAB 338

MOAB338 (316 SS) MSRP-$899.99

MOAB338 (Ti Tube) MSRP-$999.99

MOAB556TiC-MSRP-$1199.99

MOAB338Ti (Full Ti)MSRP-$1299.99

RATED CALIBER: .22LR – .338 LAPUA MAGNUM, 9mm

FULLY SERVICEABLE MONO-CONE HYBRID DESIGN

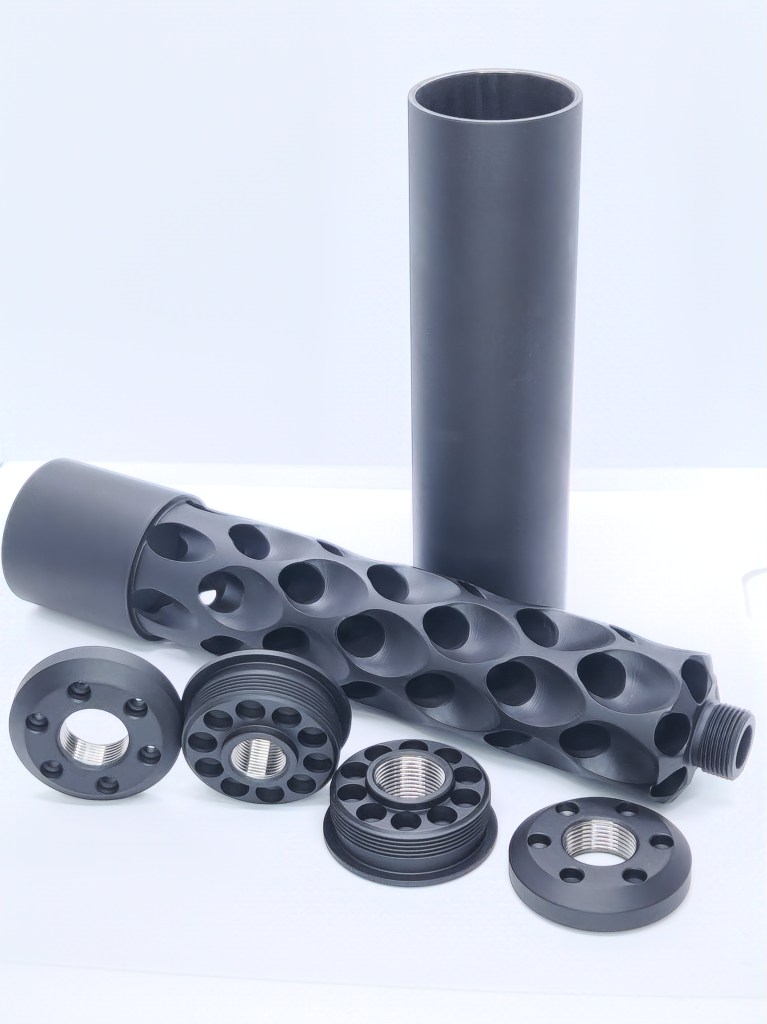

INCLUDES: CORE, TUBE, 5/8-24 DIRECT THREAD, 1/2-28 DIRECT THREAD, SOLID END CAP, FLOW THROUGH END CAP FOR PISTOL AND SEMI AUTO, SERVICE WRENCH

COMPATIBLE WITH STANDARD ASR BRAVO STYLE 1-3/8 -24 MOUNTS AND PISTOL BOOSTERS

CUSTOM DIRECT THREAD ADAPTOR AVAILABLE TO ORDER

.375” THRU HOLE

WEIGHT: 19.5 oz (All 316SS 5/8 configuration)

Diameter: 1.5″

Length: 7.375″ (STANDARD DIRECT THREAD)

MATERIAL: 316 STAINLESS STEEL

ALL PARTS ARE MADE FROM SOLID BILLET, MANUFACTURED IN

COLORADO SPRINGS, CO USA

*Titanium tubes made from seamless grade 9 titanium tube

SERVICE/USE INSTRUCTIONS: SUPPRESSOR SHOULD BE DISASSEMBLED AND EXCESS CARBON REMOVED EVERY 1000 ROUNDS OR AFTER EACH USE. .22LR SHOULD BE CLEANED EVERY 300 ROUNDS. USER SHOULD ALWAYS ENSURE ALL THREADS ARE TIGHT AND THERE ARE NO OBSTRUCTIONS

LIMITED LIFETIME WARRANTY: COVERS DEFECTS IN MATERIALS OR CRAFTSMANSHIP.

DOES NOT COVER ABUSE, NEGLECT, OVERSIZE CALIBER, BAFFLE STRIKES

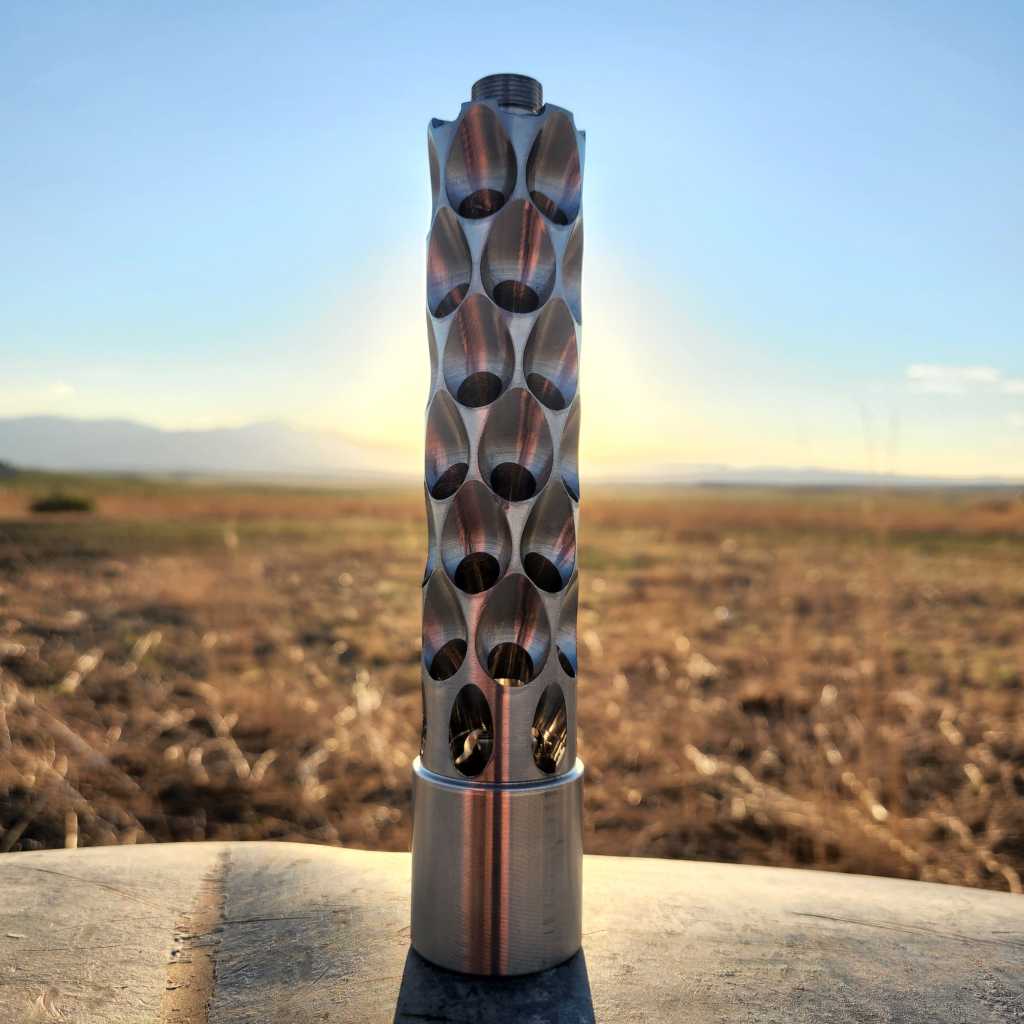

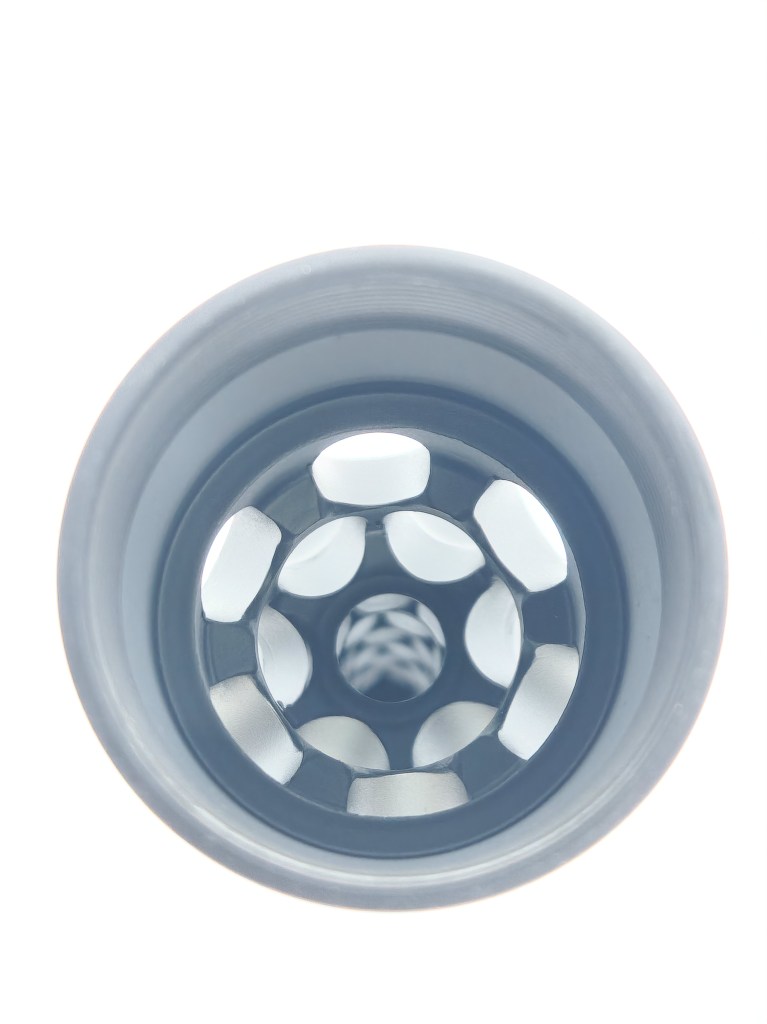

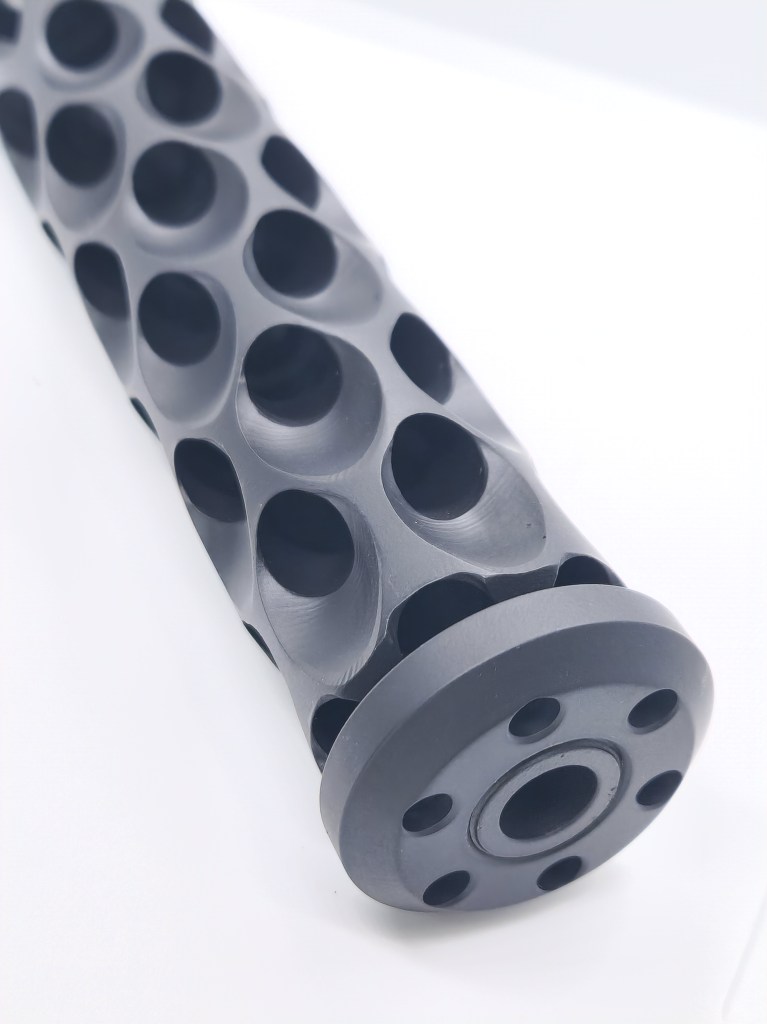

Design: Monocore system “Mono-Cone”, with 60 degree baffle geometry creating incredible structural strength and baffle face thickness while using industry proven 60 degree geometry, has taken baffle strikes with minimal to no deformation.

Easy to disassemble with single end cap thread, No threads on tube to get bound with carbon. End cap removes with provided wrench. Very easy to clean all surfaces, no baffle stack to get bound with carbon. Ultrasonics are not effective in removing baked carbon, making the common welded suppressor nearly impossible to clean.

Warranty

Limited lifetime: covers materials and craftsmanship for the life of the product, we do not cover neglect and obvious abuse outside of normal use causing damage.

Decibel reduction:

Test System: Larson Davis LxT, rifle fixed on bench with detector at shooters ear

Test firearm: 20 inch 223 ruger precision bolt action

MOAB338 model

137 dB suppressed

166 dB factory muzzle brake

29 total reduction from factory

Test firearm: 20 inch 223 ruger precision bolt action

556 TiC model

134 dB suppressed

166 factory muzzle brake

32 total reduction

Test firearm: 18 inch 308 bolt action remington

(We only had a short barrel 308 for testing here so dB numbers are skewed higher some.)

MOAB338 .308 Win

170 dB unsuppressed (meter may have been capped)

147 dB suppressed

23 reduction

Test firearm: 27 inch 338 Lapua Mag

MOAB338 .338 Lapua

170dB unsuppressed (meter may have been capped)

153dB suppressed

17 reduction

Caliber rating

22lr, Any rifle caliber up to 338 Lapua Magnum, 9mm Luger

Thru hole diameter is .375” maximum bullet diameter is .357”

Barrel length restrictions

There are NO minimum barrel length restrictions (many manufacturers have a min length depending on caliber)

Full Auto Rating: Every model is full auto belt fed rated with no barrel restrictions

Weight: MOAB338 all 316SS: 22oz

MOAB338 with Ti Tube: 19.5 oz

MOAB338 with SS core and all other Ti parts: 18oz

MOAB338Ti: 13oz

MOAB556TiC: 11oz

Point of Impact shift: every firearm may produce different results, testing on a 18” 6mm ARC AR-15 showed a max of 1.5MOA Shift in elevation lower.

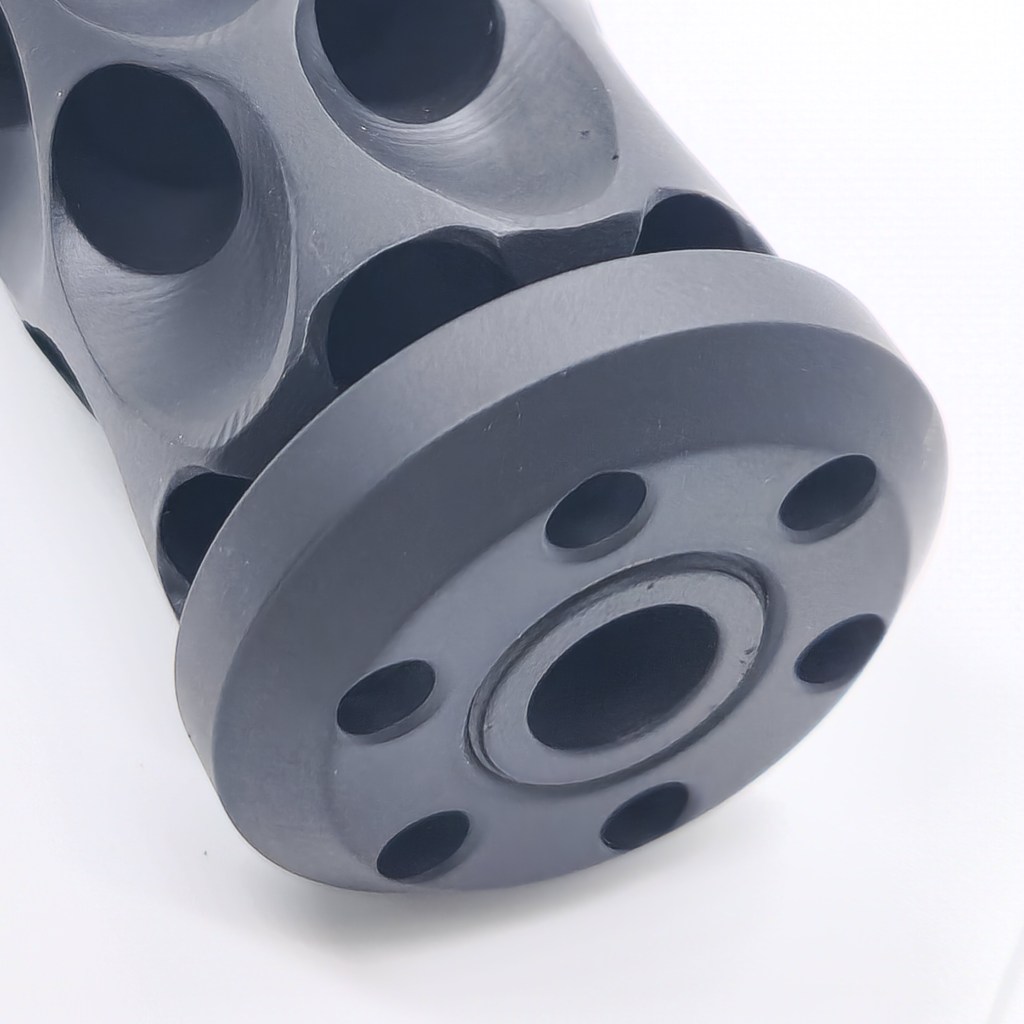

Parts included: Core, Tube, 5/8 – 24 Direct thread, 1/2 -28 Direct Thread, Flow through gas cap for semi auto (eliminates gas blowback to shooter), solid end cap for bolt actions, service wrench.

*MOAB556TiC model only includes flow through gas cap and ½-28 thread adapter reflected in price

Custom thread pitch adapters

Any custom thread size can be ordered Inch, Metric, left hand (assuming standard 60 degree V thread) Price is $100 for Stainless, $120 for Titanium

Custom thru hole sizes

Made to order, no extra cost for .223 sized thru hole (approx .25”)

Other sizes cost depending on tooling cost

Adapter compatibility

Standard 1-⅜”-24 Thread mount

ASR Bravo style adapters, pistol boosters for 9mm pistols on 338 models

Coating

Cerakote: Black or any custom color to order, we have contacts for DLC and PVD options, not complete but approx $100 upgrade option

Materials
